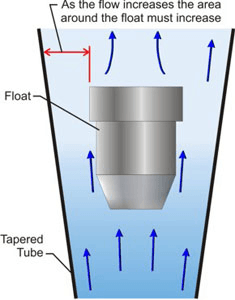

Either separate rotameters for different densities and viscosities may be used, or multiple scales on the same rotameter can be used. Scales can be set to provide direct readings for air or water or they may indicate a calibrated scale, or flow in units of air/water for conversion with lookup tables into flows of the relevant fluid. The height gained by the float as it moves is generally proportional to the rate at which the fluid flows. Rotameters are used in municipal places and industrial works for accurate level measurements. The flow area of the annular opening increases when the fluid enters the tube thus also making the float move upwards. An Introduction to Flow Measurement with Rotameters. However, as the inside of the rotameter is cone shaped (widens), the area around the float through which the medium flows increases, the flow speed and drag force decrease until there is mechanical equilibrium with the floats weight. The flow rate indication is provided by the scale marked on the glass tube. The float will find equilibrium when the area around float generates enough drag equal to weight - buoyancy. Generally safety shielded glass tubes are used for measuring both liquids and gasses. Retrieved on July 29, 2022 from https://www.azom.com/article.aspx?ArticleID=15410. If you have any questions about how they can help with your application then please contact us. (accessed July 29, 2022). The basic rotameter is the glass tube indicating-type. Typically if the float density matches the fluid density, the density changes due to buoyancy will be more important, changing the float position more; mass-flow rotameters work best with low viscosity fluids such as raw sugar juice, gasoline, jet fuel, and light hydrocarbons. The instruments must contain audible or visual alarms used in alerting the users in situations of a dangerous condition occurring. AZoM. It is an automated accessory designed to be used with the MINIFLASH FP Vision Analyzer. There are meters that do not require to be mounted directly to the process flow, these are non-invasive meters and can be used in closed piping systems. AZoM. The process reaches equilibrium when the upward force now equals the weight of the float, also giving the float a fixed position with no movement. The King 7510 series is ideal for general water flow applications, for lower water flow rates down to 2 litres per hour (LPH) or higher water flow rates up to 75 litres per minute (LPM). Research Development and Technical Institutes, Premier Control Technologies Ltd, Office 64, Hethel Engineering Centre, Chapman Way, Hethel, Norwich, NR14 8FB, UK.

It consists of a tapered tube; as fluid passes through that tube, it raises the float. Floats are designed in a manner whereby they are spherical in shape for small flows. flow meters rotameter meter rotameters float types liquid industrial controls gas globalwater credit guide globalspec learnmore As mentioned, there are many possibilities in choosing material and design for floats, packing, O-rings, and end fittings. In some rotameter designs, plastic tubes are used and this is due to their lower cost and their high impact strength. The linearity of a rotameter scale is amiss at about 5%. The lifting force and the pressure difference will temporarily increase due to the increase of the flow rate in the rotameter. Placing a glass tube rotameter at eye level can make the scale readings to be taken and recorded more easily. Different flow rates can be measured simultaneously using multiple floats. The float position can be changed after the density changes due to buoyancy, which is caused by matching the float density with the fluid density. Water over 90C (194F), with its high pH which softens glass; wet steam, which has the same effect. Similar glass tube and stainless steel float combinations are generally available, regardless of the type of case or end fittings; since the tube-float combination actually performs the measurement, this is the most important part to standardize. Rotameters are not easily adapted for reading by machine; although magnetic floats that drive a follower outside the tube are available. In this interview, wediscuss the company'snovel technologies and how they could revolutionize how we think about plastics. They do not require any further external force outside of the measuring substance, thus reducing wrong readings. Low cost acrylic tube variable area flow meter. Metallic tubes are used where the process fluid with high temperature and pressure. Afterward the float travels to the top and increases the area on the annular opening. These are used extensively and they are not only found in industrial areas but they can be used in laboratories and other pilot plants. If the fluid density is subject to change, one can use two floats. Correlation rotameter scales can be compared to correlation tables for gases like nitrogen, oxygen, hydrogen, helium, argon, and carbon dioxide. Normally the conditions are written on the sides of the flow meter along with its range of flow and the units of measurement. Typically, fitting a glass-tube rotameter at eye level allows for readings to be taken more easily. A recorder function is one which can be placed to achieve the process of data logging and recording this data in a computer system so that it can be opened and used in the later future even if not the rotameter is in use. A low-cost alternative for hot water, steam, and corrosive liquids is the use of plastic-tube rotamters; they can be made from PFA, polysulfone, or polyamide. When a rotameter is used with a liquid the float rises because of a combination of the velocity head of the fluid and the buoyancy of the liquid. The characteristics of a rotameter include: The area is proportional to the volume flowing in a unit of time through a variable meter thus making these meters have increments of equal scale. Fluid flow moves the float upward against gravity. Inverting the flow meter upside down can be helpful to some extent in trying to move this float from the base. At the Advanced Materials Show in June 2022, AZoM spoke with Ben Melrose from International Syalons about the advanced materials market, Industry 4.0, and efforts to move toward net-zero. If the rotameter exceeds its viscosity limit, youll need to correct the readings for viscosity; typically the viscosity limit is determined by material and float shape, and limitations will be provided by the rotameter makers. This rate is expressed as the change in volume flow per unit time.

rotameter To measure effectively accurate density rotameters are also placed into use. Stainless steal floats are commonly used, there are different types of metals from lead to aluminium used as floats. A rotameter consists of a tapered tube, typically made of glass with a float, made either of anodized aluminum or a ceramic, actually a shaped weight, inside that is pushed up by the drag force of the flow and pulled down by gravity. The drag force for a given fluid and float cross section is a function of flow speed squared only. Examples of fluids for which metal-tube rotameters are ideal include hot and strong alkalis, fluorine, hydrofluoric acid, hot water, steam, slurries, sour gas, additives, and molten metals. , . Some of its uses include the use in optional alarms, HART communications, totalizer pulse output, digital display, and a transmitter. The only variable within k relevant to float position is the flowing area between the float and the tube walls. The buoyant force exerted on an immersed object is equal to the weight of liquid displaced by the object. document.write(new Date().getFullYear());. Part of this standard information such as the calibration tables, standard flow values, nomographs, and slide rules are normally provided by the manufacturers. Glass tube rotameters can be effectively used in areas where several streams of gasses or liquids are being mixed together or transported through. The black ball is read until it goes off scale, and then the white ball reading is used. Environics offers stand alone permeation systems that can be used for single or multiple disposable permeation tubes. These are explained in detail below. The main property of importance is the density of the fluid; however, viscosity may also be significant. If flow rate of fluid is very high then glass tubes may be subject to breakage. In liquids, buoyancy becomes one with the velocity of the flowing liquid, thus raising the float. It measures opaque fluids under forceful conditions and fluids which are not conductors. It is even way easier when taking readings as the rotameter contains a linear scale with most of the meters. Metals of different densities can be used in the construction and these include lead and aluminum where stainless steel floats are mostly used. For In-line flanged flow meters, we make sure they are parallel to the path of flow, which must be between two already existing pieces of process pipes which are flanged. The pressure drop across the float is constant. . This fluid is the one whose flow is to be measured. Corrosion deterioration of metallic alloysexposed to the atmosphere or other adverse conditions is prevented using a variety of techniques. It is used in turning off heavy equipment automatically when the flow of the bearing lubricant gets too low. As this increases the differential pressure across the float decreases. This shows if the float is stuck since it will only rotate if it is free. Lastly drag force is a variable force having an upward direction. It is also expressed in terms of the change in gas volume per unit time. You can then read off the flow-rate for a particular fluids density and viscosity. Glass tubes are used for both liquid and gas measurement. Researchers Create Stretchable, Composite Layered 2D Materials, New Efficient Semitransparent Solar Cells for Home Windows, New Technology For High Energy Aqueous Batteries, Using Elemental Analyzers for Quality Control of Coal, How Ground Penetrating Radar is Used in Dam Inspection and Safety, Micro and Nanoscale Mechanical Testing of Glass Components, How to Create Transparent Mounted Samples Quickly. In gasses buoyancy is left out as the speed of the gas, and the pressure assigns the float to a certain height. Due to the direct flow indication the resolution is relatively poor compared to other measurement principles. These usually require a threaded hole in the process pipe. An Introduction to Flow Measurement with Rotameters. These calibration tables for standard flow values, combined with slide rules, nomographs, or computer software for determining the size of the rotameter, will often be provided by the manufacturer. This process leads to the metering tubes having greater reproducibility and more interchangeability. . Fluid temperature is another specification that has the total temperature of the media being able to be monitored usually depending on liner and construction materials. Flow rates can be manually set while tuning the valve opening and observing the scale. Be the first to get exclusive content straight to your email. Low viscosity fluids such as gasoline, jet fuel, and other light hydrocarbons can work best with mass flow rotameters. Of these two floats, one will depend on the fluid volume and the other one will be used to correct the fluid density. flow variable area meters principle working volumetric instrumentationtools requirement The mechanical nature of the measuring principle provides a flow measurement device that does not require any electrical power. Because of its advantages, the rotameter is the most widely used variable area flow meter. A transducer may be required for electronically measuring the position of the float. Due to the ever-increasing demand for energy, the demand for nuclear fuel has also increased, which has further created a significant increase in the requirement for post-irradiation examination (PIE) techniques. The floats reflect a specific reading on the scale due to the sharp or metering edges they have. Floats have a sharp edge at the point where the reading should be observed on the tube-mounted scale. Floats are made in many different shapes, with spheres and ellipsoids being the most common. A rotameter contains a transparent tube which is tapered and is placed vertically in a way that it has a small diameter at the bottom. Rotameters are not generally manufactured in sizes greater than 6 inches/150mm, but bypass designs are sometimes used on very large pipes. Due to this inertness, the equipment is good to use where corrosive fluids need to be measured. For gasses that include nitrogen, oxygen, hydrogen, helium, carbon dioxide, and argon the correlation scales of the rotameter can be checked with the correlation tables. It requires a certain minimum magnitude of flow rate of fluid below which the float would fall and just stick to the rotameter. In simple flow measurement, an alarm or an electrical output makes it possible to continuously check flow conditions and control them. Caustic soda dissolves glass; and hydrofluoric acid etches glass: for these applications different tubing must be sought. Rota meters must be mounted vertically, with the taper's widest end at the top. Pipe diameter is important to consider during installation processes to know the right dimensions which are in relation to the right rotameter. Metal-tube rotameters can be used as flow transmitters, with analog or digital controls; they can detect the float position through magnetic coupling. Discover the OTT Parsivel, a laser disdrometer that can be used to measure all precipitation types. The path of flow must be parallel to the in-line thread flow meter as they are inserted into already existing two process pipes. The float can then be compared to a calibrated scale either printed onto the tube itself or placed next to the tube on the outside of the flow meter. The many names of flow meters include flow gauge, flow indicator, liquid meter, and flow rate sensor IQS Directory Of the thread types, NPT is the most common one of them all. Due to its reliance on the ability of the fluid or gas to displace the float, graduations on a given rotameter will only be accurate for a given substance at a given temperature. Fluid enters the tube from the bottom and moves towards the top escaping through. This is found in most municipal and industrial facilities and is used to measure liquids and gasses. To obtain strong and uniform tubes, the metering tubes are created in a mandrel and annealed so as to have no internal stresses. velocity of 1 LPM to 10 LPM can be measured using a rotameter, thus making it a suitable instrument. As well as glass, plastic, metal, or stainless steel, floats can be made of materials including carboloy, sapphire, and tantalum. The rotameters can accommodate the use in sanitary environments such as the use in medical or food processing places.

Small, 6 mm (1/4") tubes can work in pressure up to 500 psig. 0.5 cm3 /min of water and 30 cm3 standard/min of air are the large scale capacities range of the flow meters. It consists of lengths of (112, 3, 10) with connections of14 NPT. At this moment, readings can be easily taken and these include readings of the density and the fluids resistance to flow (viscosity).
